This notebook walks you through a set of focused, runnable examples how to use the OpenAI Evals framework to test, grade, and iterate on tasks that require large‑language models to produce structured outputs.
Why does this matter?
Production systems often depend on JSON, SQL, or domain‑specific formats. Relying on spot checks or ad‑hoc prompt tweaks quickly breaks down. Instead, you can codify expectations as automated evals and let your team ship with safety bricks instead of sand.
pip install --upgrade openaiexport OPENAI_API_KEY="sk‑..."The goal is to extract all function, class, and constant symbols from python files inside the OpenAI SDK.
For each file we ask the model to emit structured JSON like:
{
"symbols": [
{"name": "OpenAI", "kind": "class"},
{"name": "Evals", "kind": "module"},
...
]
}A rubric model then grades completeness (did we capture every symbol?) and quality (are the kinds correct?) on a 1‑7 scale.
Let us walk though an example to evaluate a model's ability to extract symbols from code using the OpenAI Evals framework with a custom in-memory dataset.
Creates an openai.OpenAI client using the OPENAI_API_KEY we exported above. Nothing will run without this.
%pip install --upgrade openai pandas rich --quiet
import os
import time
import openai
from rich import print
import pandas as pd
client = openai.OpenAI(
api_key=os.getenv("OPENAI_API_KEY") or os.getenv("_OPENAI_API_KEY"),
)[1m[[0m[34;49mnotice[0m[1;39;49m][0m[39;49m A new release of pip is available: [0m[31;49m24.0[0m[39;49m -> [0m[32;49m25.1.1[0m [1m[[0m[34;49mnotice[0m[1;39;49m][0m[39;49m To update, run: [0m[32;49mpip install --upgrade pip[0m Note: you may need to restart the kernel to use updated packages.
get_dataset builds a small in-memory dataset by reading several SDK files.structured_output_grader defines a detailed evaluation rubric.client.evals.create(...) registers the eval with the platform.def get_dataset(limit=None):
openai_sdk_file_path = os.path.dirname(openai.__file__)
file_paths = [
os.path.join(openai_sdk_file_path, "resources", "evals", "evals.py"),
os.path.join(openai_sdk_file_path, "resources", "responses", "responses.py"),
os.path.join(openai_sdk_file_path, "resources", "images.py"),
os.path.join(openai_sdk_file_path, "resources", "embeddings.py"),
os.path.join(openai_sdk_file_path, "resources", "files.py"),
]
items = []
for file_path in file_paths:
items.append({"input": open(file_path, "r").read()})
if limit:
return items[:limit]
return items
structured_output_grader = """
You are a helpful assistant that grades the quality of extracted information from a code file.
You will be given a code file and a list of extracted information.
You should grade the quality of the extracted information.
You should grade the quality on a scale of 1 to 7.
You should apply the following criteria, and calculate your score as follows:
You should first check for completeness on a scale of 1 to 7.
Then you should apply a quality modifier.
The quality modifier is a multiplier from 0 to 1 that you multiply by the completeness score.
If there is 100% coverage for completion and it is all high quality, then you would return 7*1.
If there is 100% coverage for completion but it is all low quality, then you would return 7*0.5.
etc.
"""
structured_output_grader_user_prompt = """
<Code File>
{{item.input}}
</Code File>
<Extracted Information>
{{sample.output_json.symbols}}
</Extracted Information>
"""
logs_eval = client.evals.create(
name="Code QA Eval",
data_source_config={
"type": "custom",
"item_schema": {
"type": "object",
"properties": {"input": {"type": "string"}},
},
"include_sample_schema": True,
},
testing_criteria=[
{
"type": "score_model",
"name": "General Evaluator",
"model": "o3",
"input": [
{"role": "system", "content": structured_output_grader},
{"role": "user", "content": structured_output_grader_user_prompt},
],
"range": [1, 7],
"pass_threshold": 5.5,
}
],
)Here we launch two runs against the same eval: one that calls the Completions endpoint, and one that calls the Responses endpoint.
### Kick off model runs
gpt_4one_completions_run = client.evals.runs.create(
name="gpt-4.1",
eval_id=logs_eval.id,
data_source={
"type": "completions",
"source": {
"type": "file_content",
"content": [{"item": item} for item in get_dataset(limit=1)],
},
"input_messages": {
"type": "template",
"template": [
{
"type": "message",
"role": "system",
"content": {"type": "input_text", "text": "You are a helpful assistant."},
},
{
"type": "message",
"role": "user",
"content": {
"type": "input_text",
"text": "Extract the symbols from the code file {{item.input}}",
},
},
],
},
"model": "gpt-4.1",
"sampling_params": {
"seed": 42,
"temperature": 0.7,
"max_completions_tokens": 10000,
"top_p": 0.9,
"response_format": {
"type": "json_schema",
"json_schema": {
"name": "python_symbols",
"schema": {
"type": "object",
"properties": {
"symbols": {
"type": "array",
"description": "A list of symbols extracted from Python code.",
"items": {
"type": "object",
"properties": {
"name": {"type": "string", "description": "The name of the symbol."},
"symbol_type": {
"type": "string", "description": "The type of the symbol, e.g., variable, function, class.",
},
},
"required": ["name", "symbol_type"],
"additionalProperties": False,
},
}
},
"required": ["symbols"],
"additionalProperties": False,
},
"strict": True,
},
},
},
},
)
gpt_4one_responses_run = client.evals.runs.create(
name="gpt-4.1-mini",
eval_id=logs_eval.id,
data_source={
"type": "responses",
"source": {
"type": "file_content",
"content": [{"item": item} for item in get_dataset(limit=1)],
},
"input_messages": {
"type": "template",
"template": [
{
"type": "message",
"role": "system",
"content": {"type": "input_text", "text": "You are a helpful assistant."},
},
{
"type": "message",
"role": "user",
"content": {
"type": "input_text",
"text": "Extract the symbols from the code file {{item.input}}",
},
},
],
},
"model": "gpt-4.1-mini",
"sampling_params": {
"seed": 42,
"temperature": 0.7,
"max_completions_tokens": 10000,
"top_p": 0.9,
"text": {
"format": {
"type": "json_schema",
"name": "python_symbols",
"schema": {
"type": "object",
"properties": {
"symbols": {
"type": "array",
"description": "A list of symbols extracted from Python code.",
"items": {
"type": "object",
"properties": {
"name": {"type": "string", "description": "The name of the symbol."},
"symbol_type": {
"type": "string",
"description": "The type of the symbol, e.g., variable, function, class.",
},
},
"required": ["name", "symbol_type"],
"additionalProperties": False,
},
}
},
"required": ["symbols"],
"additionalProperties": False,
},
"strict": True,
},
},
},
},
)Next, we will use a simple loop that waits for all runs to finish, then saves each run’s JSON to disk so you can inspect it later or attach it to CI artifacts.
### Utility poller
def poll_runs(eval_id, run_ids):
while True:
runs = [client.evals.runs.retrieve(rid, eval_id=eval_id) for rid in run_ids]
for run in runs:
print(run.id, run.status, run.result_counts)
if all(run.status in {"completed", "failed"} for run in runs):
# dump results to file
for run in runs:
with open(f"{run.id}.json", "w") as f:
f.write(
client.evals.runs.output_items.list(
run_id=run.id, eval_id=eval_id
).model_dump_json(indent=4)
)
break
time.sleep(5)
poll_runs(logs_eval.id, [gpt_4one_completions_run.id, gpt_4one_responses_run.id])evalrun_68487dcc749081918ec2571e76cc9ef6 completed ResultCounts(errored=0, failed=1, passed=0, total=1)
evalrun_68487dcdaba0819182db010fe5331f2e completed ResultCounts(errored=0, failed=1, passed=0, total=1)
We will fetch the output items for both runs so we can print or post‑process them.
completions_output = client.evals.runs.output_items.list(
run_id=gpt_4one_completions_run.id, eval_id=logs_eval.id
)
responses_output = client.evals.runs.output_items.list(
run_id=gpt_4one_responses_run.id, eval_id=logs_eval.id
)Let us print a side-by-side view of completions vs responses.
from IPython.display import display, HTML
# Collect outputs for both runs
completions_outputs = [item.sample.output[0].content for item in completions_output]
responses_outputs = [item.sample.output[0].content for item in responses_output]
# Create DataFrame for side-by-side display (truncated to 250 chars for readability)
df = pd.DataFrame({
"Completions Output": [c[:250].replace('\n', ' ') + ('...' if len(c) > 250 else '') for c in completions_outputs],
"Responses Output": [r[:250].replace('\n', ' ') + ('...' if len(r) > 250 else '') for r in responses_outputs]
})
# Custom color scheme
custom_styles = [
{'selector': 'th', 'props': [('font-size', '1.1em'), ('background-color', '#323C50'), ('color', '#FFFFFF'), ('border-bottom', '2px solid #1CA7EC')]},
{'selector': 'td', 'props': [('font-size', '1em'), ('max-width', '650px'), ('background-color', '#F6F8FA'), ('color', '#222'), ('border-bottom', '1px solid #DDD')]},
{'selector': 'tr:hover td', 'props': [('background-color', '#D1ECF1'), ('color', '#18647E')]},
{'selector': 'tbody tr:nth-child(even) td', 'props': [('background-color', '#E8F1FB')]},
{'selector': 'tbody tr:nth-child(odd) td', 'props': [('background-color', '#F6F8FA')]},
{'selector': 'table', 'props': [('border-collapse', 'collapse'), ('border-radius', '6px'), ('overflow', 'hidden')]},
]
styled = (
df.style
.set_properties(**{'white-space': 'pre-wrap', 'word-break': 'break-word', 'padding': '8px'})
.set_table_styles(custom_styles)
.hide(axis="index")
)
display(HTML("""
<h4 style="color: #1CA7EC; font-weight: 600; letter-spacing: 1px; text-shadow: 0 1px 2px rgba(0,0,0,0.08), 0 0px 0px #fff;">
Completions vs Responses Output
</h4>
"""))
display(styled)| Completions Output | Responses Output |
|---|---|
| {"symbols":[{"name":"Evals","symbol_type":"class"},{"name":"AsyncEvals","symbol_type":"class"},{"name":"EvalsWithRawResponse","symbol_type":"class"},{"name":"AsyncEvalsWithRawResponse","symbol_type":"class"},{"name":"EvalsWithStreamingResponse","symb... | {"symbols":[{"name":"Evals","symbol_type":"class"},{"name":"runs","symbol_type":"property"},{"name":"with_raw_response","symbol_type":"property"},{"name":"with_streaming_response","symbol_type":"property"},{"name":"create","symbol_type":"function"},{... |

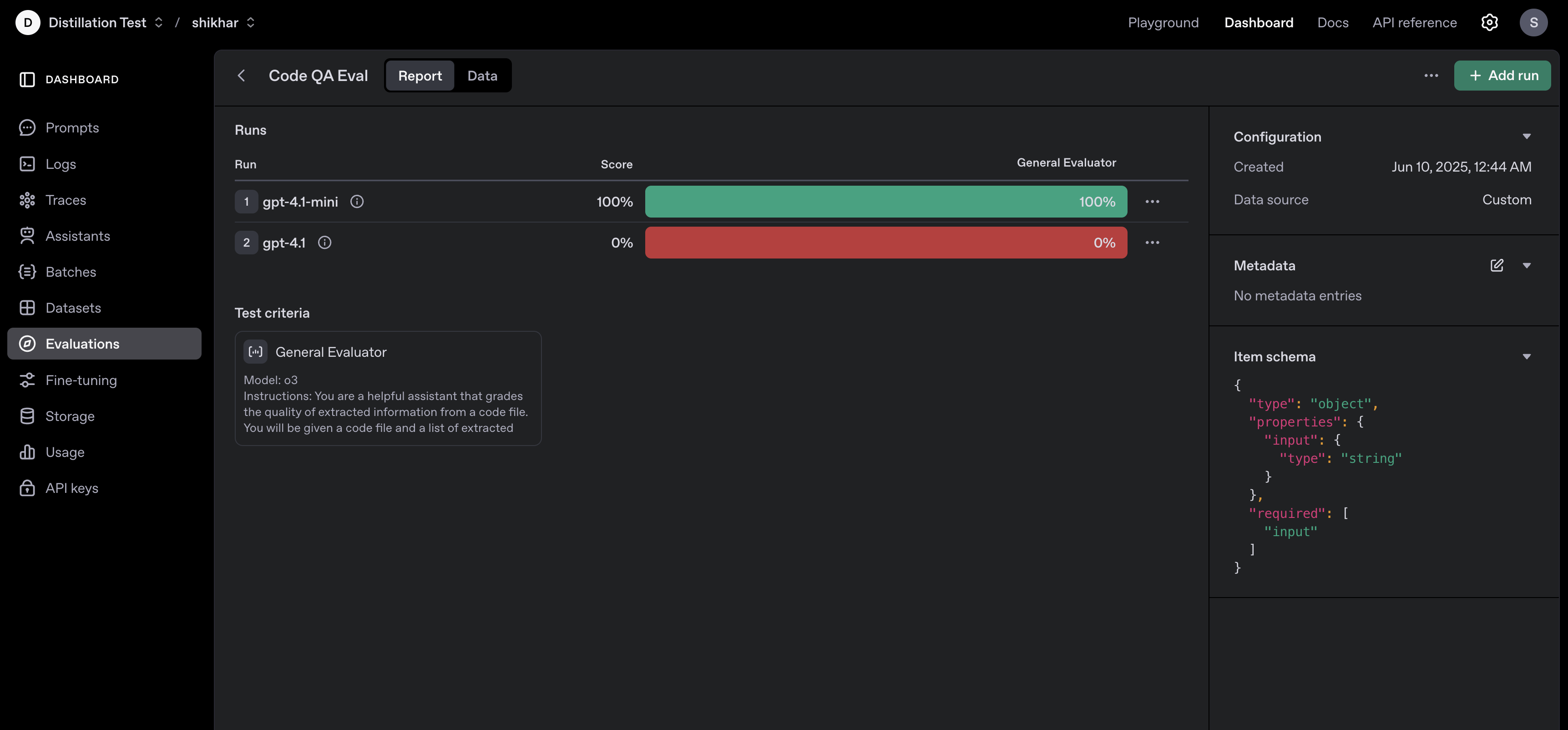

Below are visualizations that represent the evaluation data and code outputs for structured QA evaluation. These images provide insights into the data distribution and the evaluation workflow.

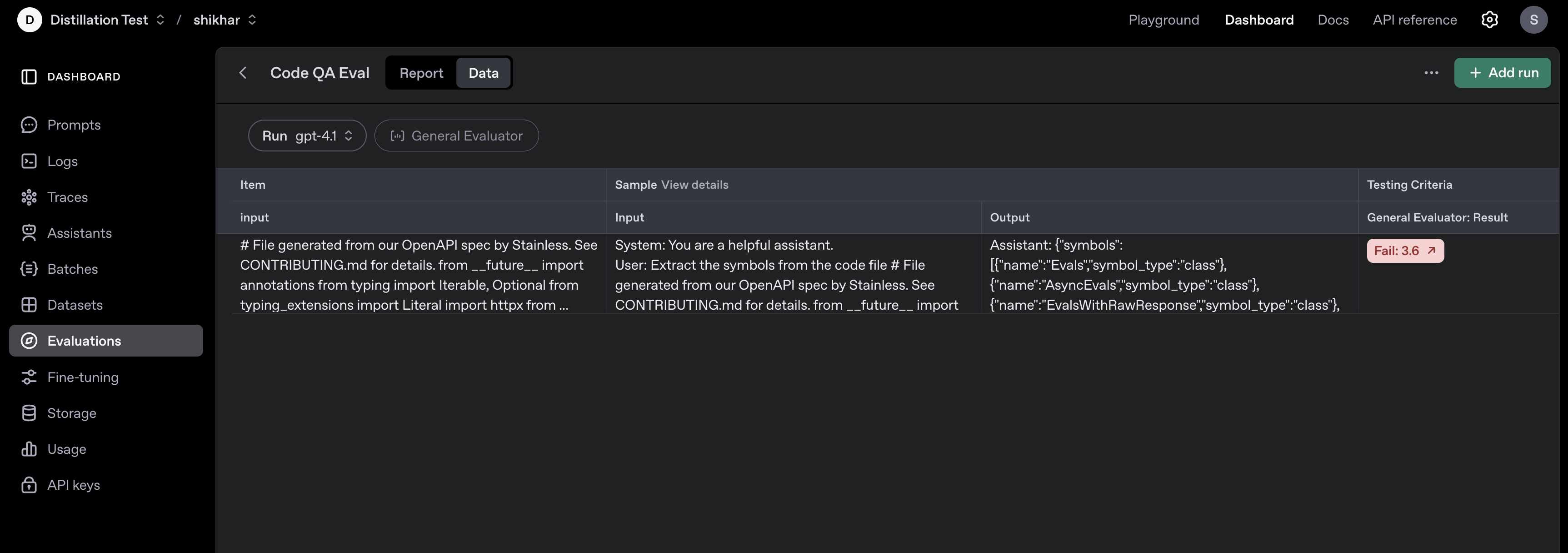

Evaluation Data Overview
Evaluation Code Workflow
By reviewing these visualizations, you can better understand the structure of the evaluation dataset and the steps involved in evaluating structured outputs for QA tasks.

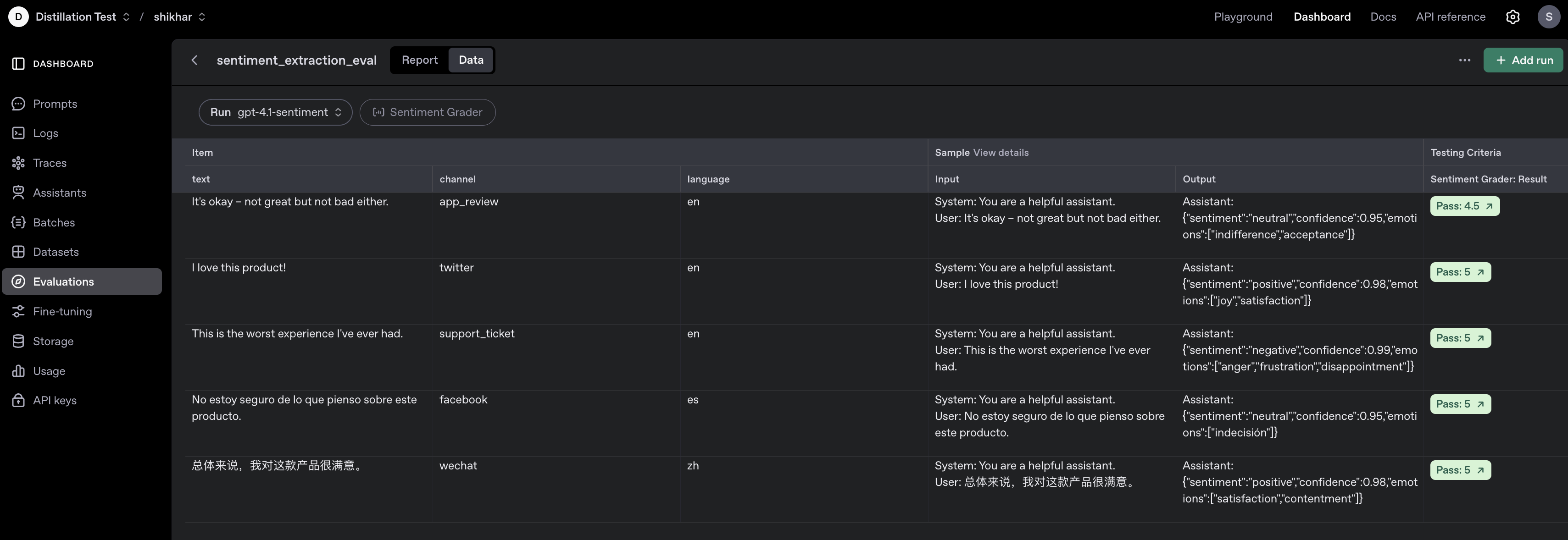

In a similar way, let us evaluate a multi-lingual sentiment extraction model with structured outputs.
# Sample in-memory dataset for sentiment extraction
sentiment_dataset = [
{
"text": "I love this product!",
"channel": "twitter",
"language": "en"
},
{
"text": "This is the worst experience I've ever had.",
"channel": "support_ticket",
"language": "en"
},
{
"text": "It's okay – not great but not bad either.",
"channel": "app_review",
"language": "en"
},
{
"text": "No estoy seguro de lo que pienso sobre este producto.",
"channel": "facebook",
"language": "es"
},
{
"text": "总体来说，我对这款产品很满意。",
"channel": "wechat",
"language": "zh"
},
]# Define output schema
sentiment_output_schema = {
"type": "object",
"properties": {
"sentiment": {
"type": "string",
"description": "overall label: positive / negative / neutral"
},
"confidence": {
"type": "number",
"description": "confidence score 0-1"
},
"emotions": {
"type": "array",
"description": "list of dominant emotions (e.g. joy, anger)",
"items": {"type": "string"}
}
},
"required": ["sentiment", "confidence", "emotions"],
"additionalProperties": False
}
# Grader prompts
sentiment_grader_system = """You are a strict grader for sentiment extraction.
Given the text and the model's JSON output, score correctness on a 1-5 scale."""
sentiment_grader_user = """Text: {{item.text}}
Model output:
{{sample.output_json}}
"""# Register an eval for the richer sentiment task
sentiment_eval = client.evals.create(
name="sentiment_extraction_eval",
data_source_config={
"type": "custom",
"item_schema": { # matches the new dataset fields
"type": "object",
"properties": {
"text": {"type": "string"},
"channel": {"type": "string"},
"language": {"type": "string"},
},
"required": ["text"],
},
"include_sample_schema": True,
},
testing_criteria=[
{
"type": "score_model",
"name": "Sentiment Grader",
"model": "o3",
"input": [
{"role": "system", "content": sentiment_grader_system},
{"role": "user", "content": sentiment_grader_user},
],
"range": [1, 5],
"pass_threshold": 3.5,
}
],
)# Run the sentiment eval
sentiment_run = client.evals.runs.create(
name="gpt-4.1-sentiment",
eval_id=sentiment_eval.id,
data_source={
"type": "responses",
"source": {
"type": "file_content",
"content": [{"item": item} for item in sentiment_dataset],
},
"input_messages": {
"type": "template",
"template": [
{
"type": "message",
"role": "system",
"content": {"type": "input_text", "text": "You are a helpful assistant."},
},
{
"type": "message",
"role": "user",
"content": {
"type": "input_text",
"text": "{{item.text}}",
},
},
],
},
"model": "gpt-4.1",
"sampling_params": {
"seed": 42,
"temperature": 0.7,
"max_completions_tokens": 100,
"top_p": 0.9,
"text": {
"format": {
"type": "json_schema",
"name": "sentiment_output",
"schema": sentiment_output_schema,
"strict": True,
},
},
},
},
)
In this notebook, we have demonstrated how to use the OpenAI Evaluation API to evaluate a model's performance on a structured output task.
Next steps:
For more information, see the OpenAI Evals documentation.
